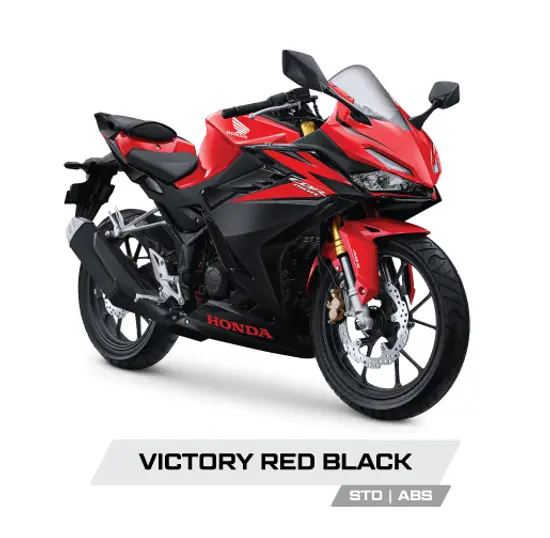

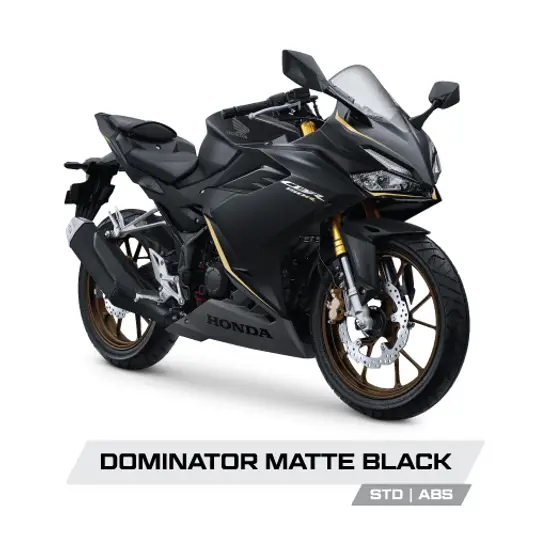

| ALL NEW CBR 150R STD, DOMINATOR MATTE BLACK (HS) & VICTORY BLACK RED (MH) | Rp. 38.275.000 |

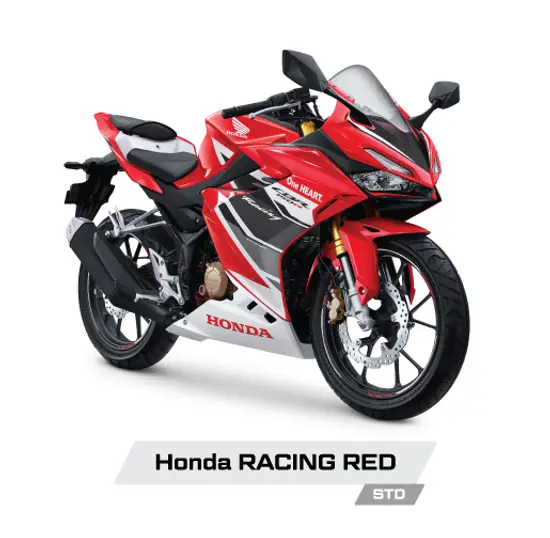

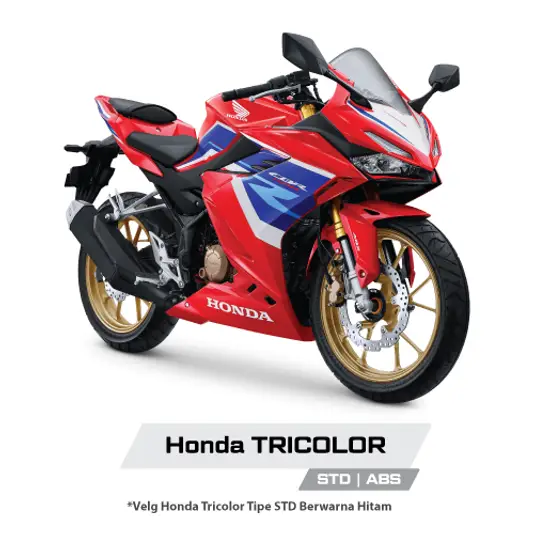

| All New CBR 150R STD, TRICOLOR (RD) & RACING RED (MP) | Rp. 38.975.000 |
| All New CBR 150R ABS, Dominator Matte Black (HS) & Victory Black Red (MH) | Rp. 42.375.000 |

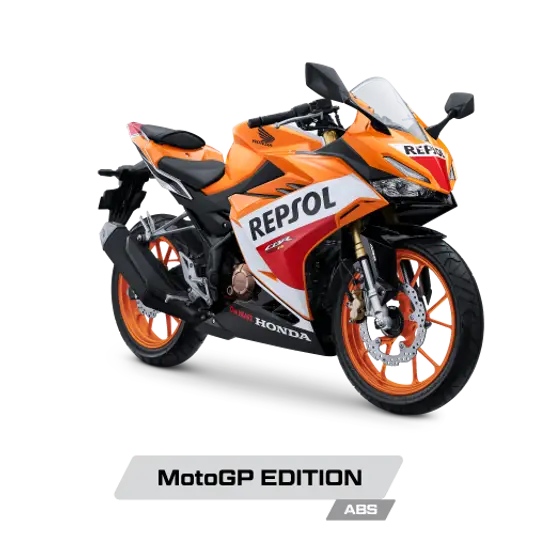

| All New CBR 150R ABS, TRICOLOR (RD) & REPSOL | Rp. 42.650.000 |
Tipe Mesin |
4-Langkah, DOHC |
Tipe Transmisi |
Manual, 6 kecepatan |
Tipe Kopling |
Wet |
Tipe Starter |
Elektrik |
Diameter x Langkah |
57,3 x 57,8 mm |
Volume Langkah |
149,16 cc |
Daya Maksimum |
12,6 kW (17,1 PS / 9.000 rpm ) |
Torsi Maksimum |
14,4 Nm (1.47 kgf.m / 7.000 rpm ) |
Busi |
- |
Sistem Bahan Bakar |
PGM-FI (Programmed Fuel Injection) |
Pengapian |
- |
Tipe Pendingin |
Liquid Cooled with Auto Fan |
Perbandingan Kompresi |
11,3:1 |
Pola Perpindahan Gigi |
1 - N - 2 - 3 - 4 - 5 - 6 |
Jenis Pelumas |
- |
Tipe Rangka |
Diamond (Truss) Frame |
Tipe Suspensi Depan |
Inverted Telescopic Front Suspension |
Tipe Suspensi Belakang |
Swing Arm with Monoshock (Pro-Link) System |
Ukuran Ban Depan |
100/80-17M/C 52P |
Ukuran Ban Belakang |
130/70-17M/C 62P |
Tipe Rem depan |
Wavy Disc Brake (Non-ABS)/Wavy Disc Brake - ABS (ABS) |
Tipe Rem Belakang |
Wavy Disc Brake (Non-ABS)/Wavy Disc Brake - ABS (ABS) |
Sistem Pengereman |
- |
Panjang x Lebar x Tinggi |
1.983 x 700 x 1.077 mm |
Jarak Sumbu Roda |
1.310 mm |
Jarak Terendah Ke Tanah |
160 mm |
Ketinggian Tempat Duduk |
782 mm |
Berat Kosong |
137 kg (Non ABS)/139 kg (ABS) |
Kapasitas Tangki Bahan Bakar |
12 Liter |
Kapasitas Minyak Pelumas |
1,1 Liter |
Tipe Baterai Atau Aki |
- |
Sistem Pengapian |
- |
Tipe Busi |
- |
Power Charger |
- |
